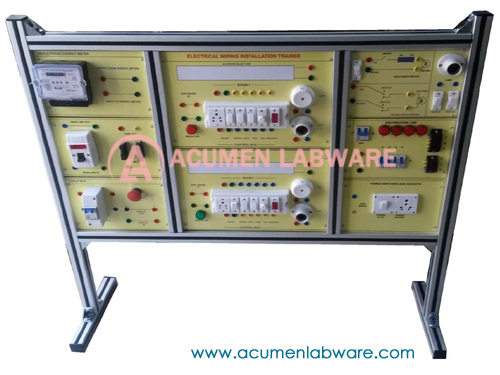

Domestic Wiring Trainer

Domestic Wiring Trainer

Product Code:In stock

. Study of Domestic House Wiring on well printed circuits and symbols training panel.
. Instruction manual.
. Patch Cords 4mm (Heavy Duty) 1Meter Length.
. High Voltage Test Points are Provided With 4mm Safety Sockets
. The trainer is housed in Metal cabinet.
. Short Circuit protection with the MCB.
. Size of the trainer set 42"x24"

TECHNICAL SPECIFICATIONS:

. Operated on Mains AC Power 230V, 50Hz +10%
• Single Phase Energy Meter
• Single Phase Switch
• Cartridge Fuses (2Nos.)
• Stair Case Switch (2Way Switch)
• Distribution Line Through Single Phase Isolator
• Power Switch and Socket Pair
• Emergency Stop
2 Nos House Wiring Control Box: Each Includes-
• Electronics Blast 1Nos.
• 5Pin Socket 1Nos.
• Switches 3Nos
• Fan Regulator 1Nos.
• Ceiling Rose 1Nos.
• Indicator 1Nos.
• Lamp Holder 1Nos
