DIGITAL ELECTRONICS Lab Trainers & Equipments comprise of the following:
- Basic logic gates using six TTL ic's (6 in 1).
- RTL Logic Gates (5 in 1).
- Basic Logic Gate using Discrete Components (7 in 1).
- Digital Logic Trainer (Logic Gates, Booleon Identities.
- Demorgan's Theorems).
- Verification of truth tables of Logic Gates using Universal Gates (PCB MODEL).
- Circuit Designer Board.
- Logic gate circuit trainer.
- 4 Bit Adder & Subtractor Circuits using IC 7483.
- Digital Full Adders & Subtractors using NAND Gates.

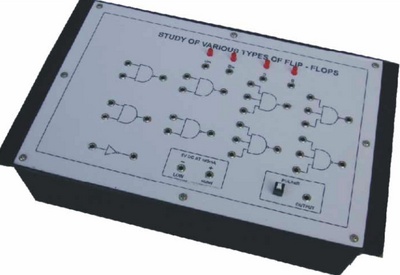

- Study of various types of Flip-Flops.
- 4 Bit Counters (Synchronous & Asynchronous).
- 4 Bit Shift Registers.
