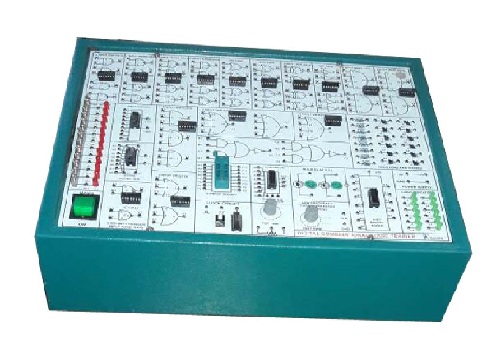

Digital Combinational Logic Training Kit

Digital Combinational Logic Training Kit

Product Code:In stock

Power Supplies:
• Dc Power Supply IC Regulated +5V Dc, 1A.
• Operated On Mains Power 230v, 50hz +10%
Logic Gates:
1. 4 AND (2-input)
2. 3 AND (3-input)
3. 12 NAND (2-input)
4. 4 NAND (4-input)
5. 2 NAND TRIGGER (4-input)
6. 4 OR (2-input)
7. 2 OR (3-input)
8. 1 OR (4-input)
9. 4 NOR (2-input)
10. 2 NOR (4-input)
11. 4 EX-OR (2-input)
12. 6 inverters
13. 2 AOI (2 and 3 input)
• Adder And Subtractor Using 7483 IC
• Parity Checker Using 74280 IC
• Multiplexer Using 74153 IC
• Comparator Using 7485 IC
• 16 Pin Zip Socket
• The Following Components Are Provided On The Trainer Set
1. Bulb 2 Nos.
2. Pot 100K
3. Pulse Generator with Rising and Falling Edge.
4. Low Frequency Clock Generator 1H to 10Hz.
5. 12 silicon diodes
6. 8 resistances
• Logic Inputs & Outputs 16 Bit
