Digital modulation (DM)

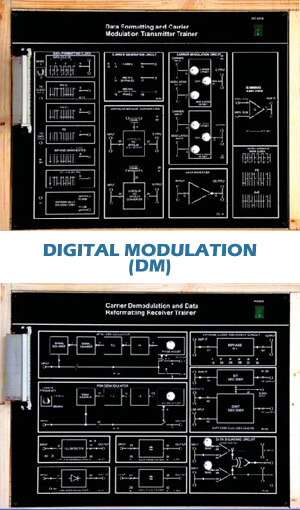

Data Formatting & Carrier Modulation And Demodulation Trainer
Product Code:AL-E807
Product Details:
Carrier modulation: FSK, PSK, ASK & QPSK
Power Supply DC
Enclosures Wooden
Data Formatting & Carrier Modulation And Demodulation Trainer
In digital communication Data Formatting is very important. The available data stream from PCM transmitter or data from Variable Data Generator ST8311 is converted into different formats best suited to individual transmission system. Various formats are covered in this trainer. This trainer also covers various carrier modulation techniques required for transmission of digital information. This trainer requires either TDM Pulse Code Modulation Transmitter Trainer (ST8304) or 8 Bit Variable Data Generator (ST8311) for the input of digital data
FEATURES:
• A self contained Trainer
• Functional Diagrams indicated on board mimic
• Input-output and Test Points provided onboard
• Fully documented operating manual
• Bare board Tested Glass Epoxy SMOBC PCB is used
• Compact Size
• 2 Year Warranty
• Australian Pine Wood
• Attractive Wooden enclosures of Light weight
• On-Board carrier generation circuit (Sinewaves
• Synchronised to transmitted data)
• On-Board In-phase and Quadrature Phase
• Carrier for QPSK modulation
• Different data conditioning formats . NRZ(L),
• NRZ(M) RZ, Biphase (Manchester), Biphase
• (Mark), AMI, RB, Differentially encoded dibit pair
• Variable Carrier and Modulation Offset
• Variable carrier gain
• On-Board Unipolar to Bipolar Conversion
