Double Stage Air Compressor Test Rig

Product Code:In stock

*An ENGLISH instruction manual with elaborate experimental procedures and block diagram etc. shall be provided with the training system set-up.

Description:

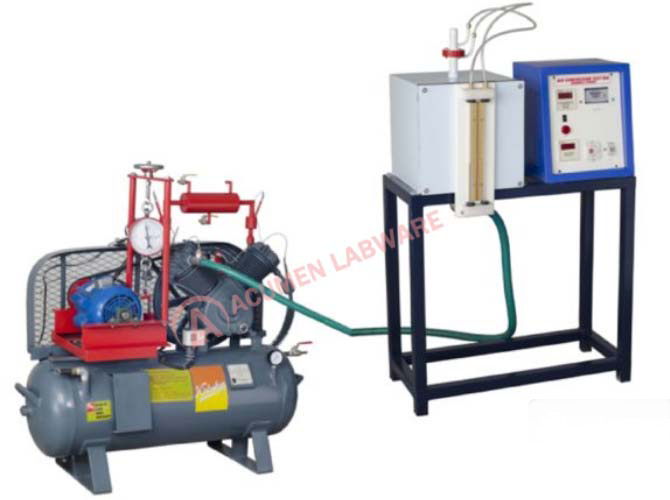

Two Stage Air Compressor Test Rig training set-up consists of a double stage reciprocating type air compressor driven by a motor through a belt. The outlet of the air compressor is connected to reservoir tank and suction is connected to another air tank with a orifice plate and a water manometer. Bellow is fitted on one side of the air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir and at intermediate stage can be measured by Temp. Sensors and gauges.

Scope of Study:

• To calculate the volumetric efficiency.
• To calculate isothermal Horse Power.
• To calculate compression ratio.

TECHNICAL DETAILS:

Compressor : Double Stage, Double Cylinder, Capacity 6.9 CFM max. Working Pressure: Max. 7 kg/cm2
Drive : 2 HP motor, Crompton/Standard make, Swinging Field type
Spring Balance : Dial type, 10 kg
Flow Measurement : Orifice meter with Manometer
Temperature Measurement: RTD PT-100 type sensor (4Nos.)
Air Tank : Capacity 150 Ltrs. with safety valve, shut off valve,
Pressure Gauge : Bourdon Type.

Components mounted on the control panel are:

RPM measurement : RPM Indicator with Proximity sensor.
MCB : For overload protection.
