. Light Indicator for Mains.
. Front panel built with high class insulated Printed Bakelite/Aluminum Board sheet with well printed circuits and symbols.
. MCB for Short Circuit protection
. Instruction manual.
. Connections are brought out through 4mm Colored Safety Sockets.
. Patch Cords 4mm.
. The trainer is housed in Metal cabinet.
. Size of the trainer set 24x20"
TECHNICAL SPECIFICATIONS:
Analog Meters:
. Voltmeter 300V AC
. Voltmeter 300V AC
Power supplies:
. Power Supply 0-230V,2A
. Operated on Mains power 230V, 50Hz +10%

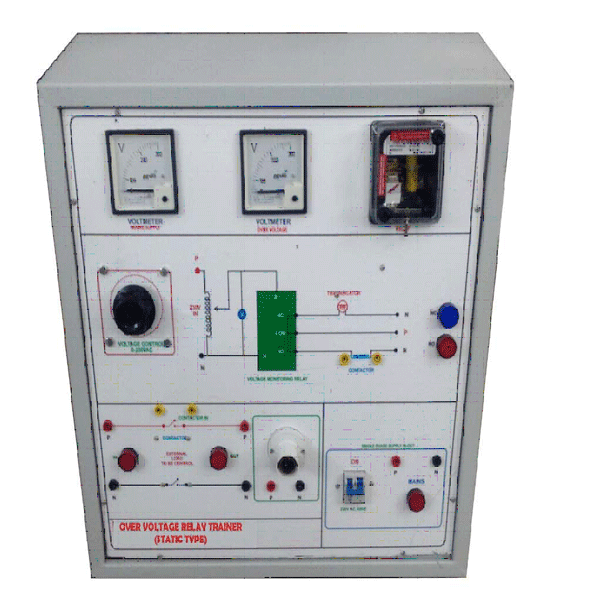

Components placed on the panel are:
. Static Over Voltage Relay
. Contactor (Inside)
. One Lamp Load.
. Trip Indicators
