Product Name: DIGITAL ELECTRONICS Lab Equipment

Product Code:  In stock

DIGITAL ELECTRONICS Lab Trainers & Equipments comprise of the following:

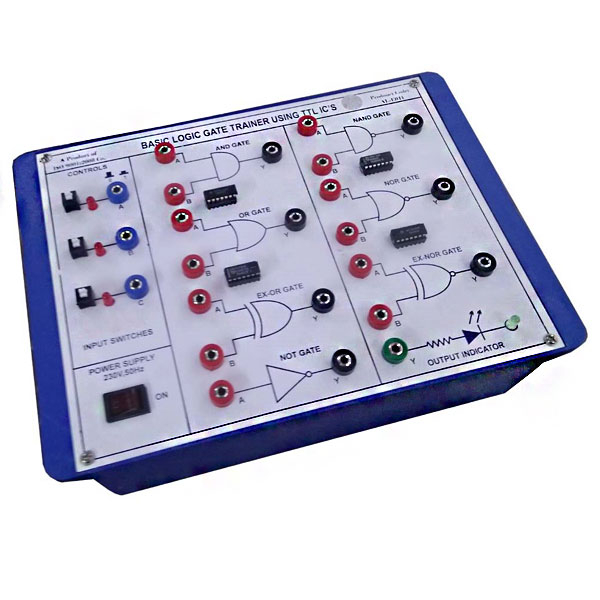

- Basic logic gates using six TTL ic's (6 in 1).
- RTL Logic Gates (5 in 1).
- Basic Logic Gate using Discrete Components (7 in 1).
- Digital Logic Trainer (Logic Gates, Booleon Identities.

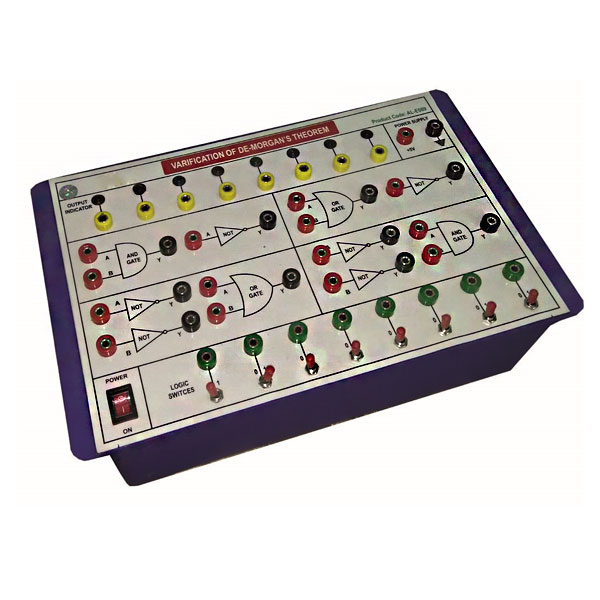

- Demorgan's Theorems).
- Verification of truth tables of Logic Gates using Universal Gates (PCB MODEL).
- Circuit Designer Board.
- Logic gate circuit trainer.

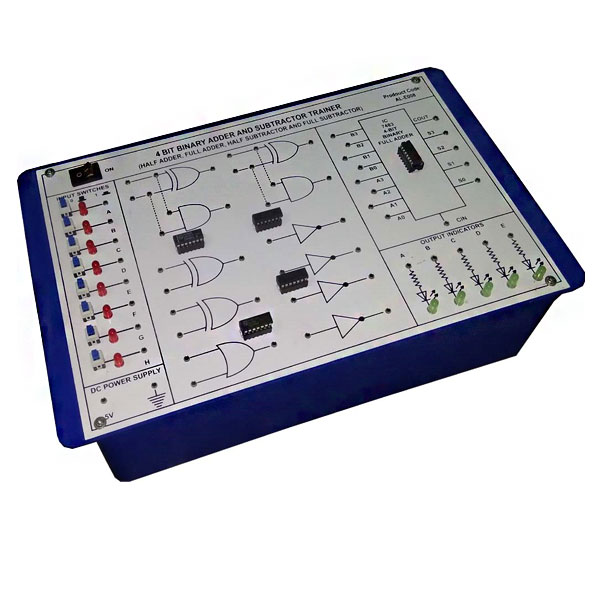

- 4 Bit Adder & Subtractor Circuits using IC 7483.

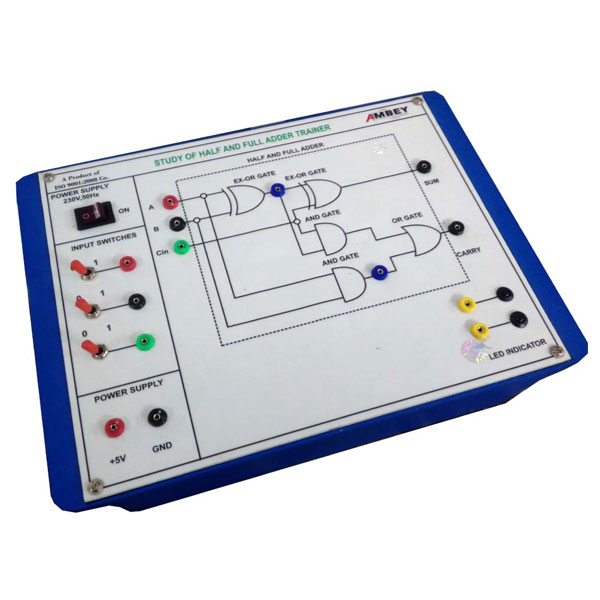

- Digital Full Adders & Subtractors using NAND Gates.

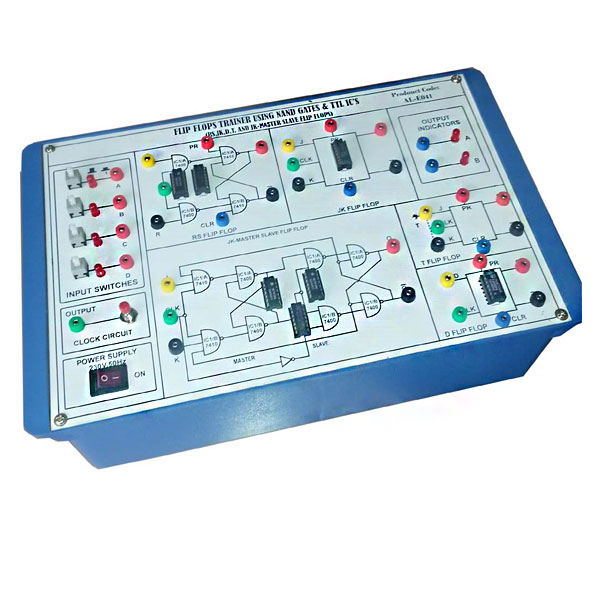

- Study of various types of Flip-Flops.

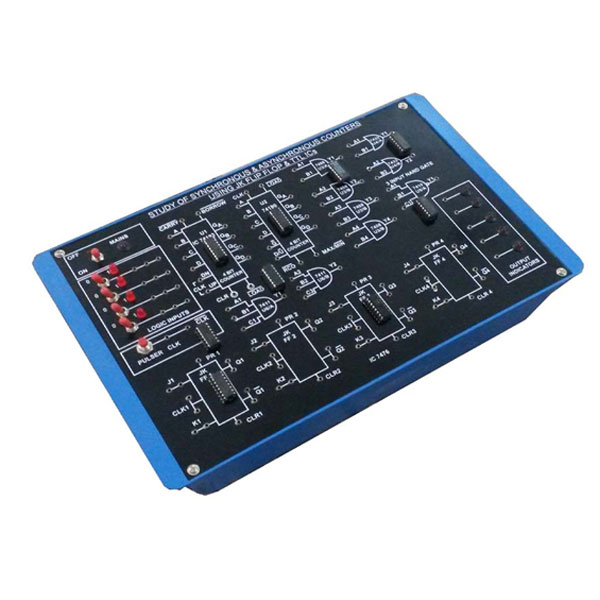

- 4 Bit Counters (Synchronous & Asynchronous).

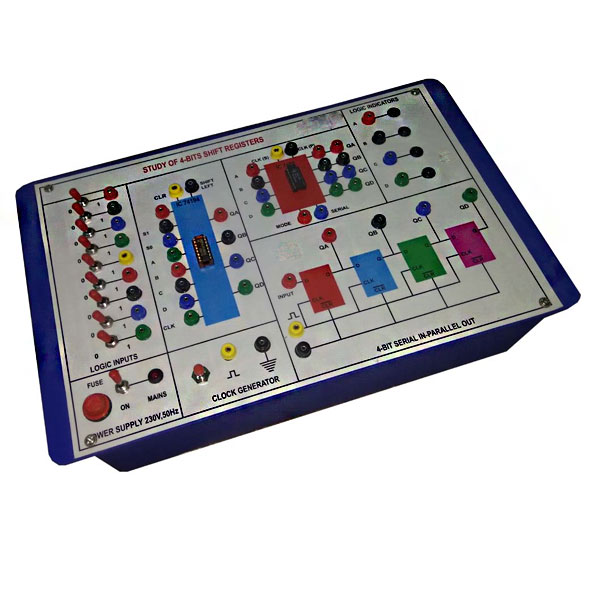

- 4 Bit Shift Registers.

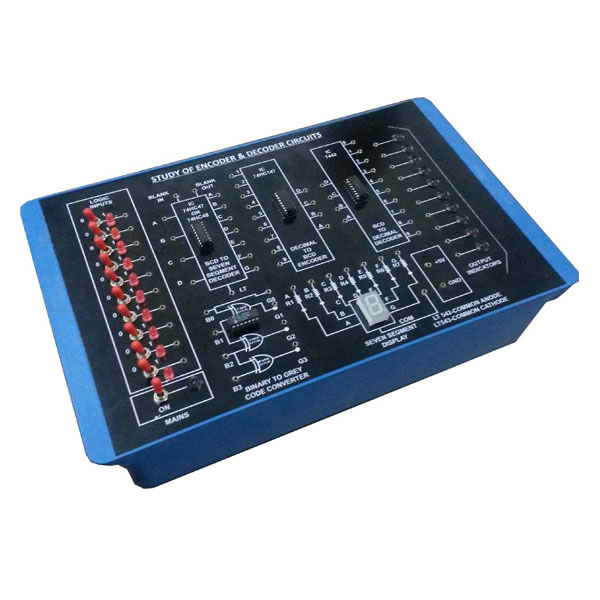

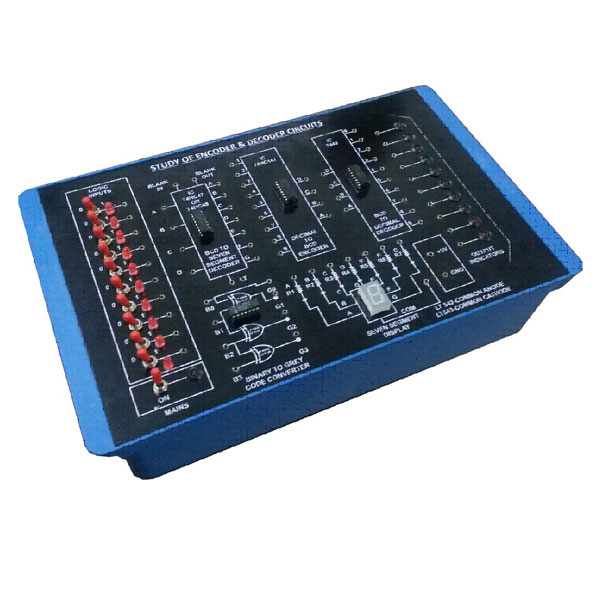

- Encoder & Decoder Circuits.

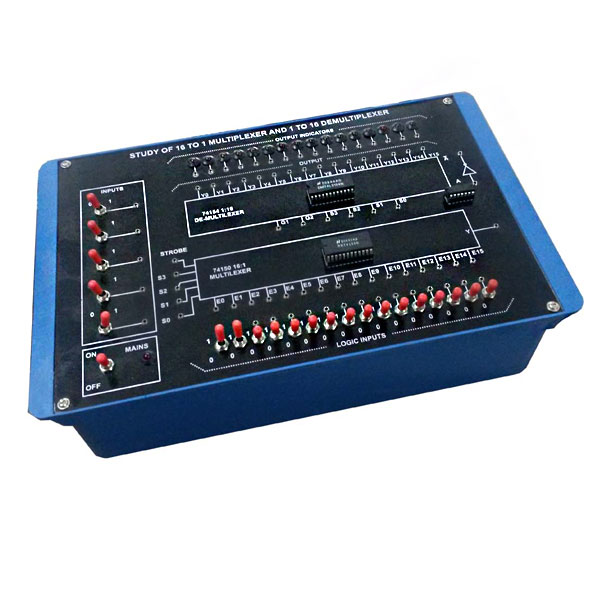

- 16 to 1 line Multiplexer & 1 to 16 Line Demultiplexer.
- 4/8 to 1 line Multiplexer.
- 4/8 to 1 line DeMultiplexer.
- RAM Circuit using IC 7489.
- TTL-CMOS, CMOS-TTL Interfacing.
- Arithmatic/Logic Unit (ALU).
- Parity Generator/Checker.

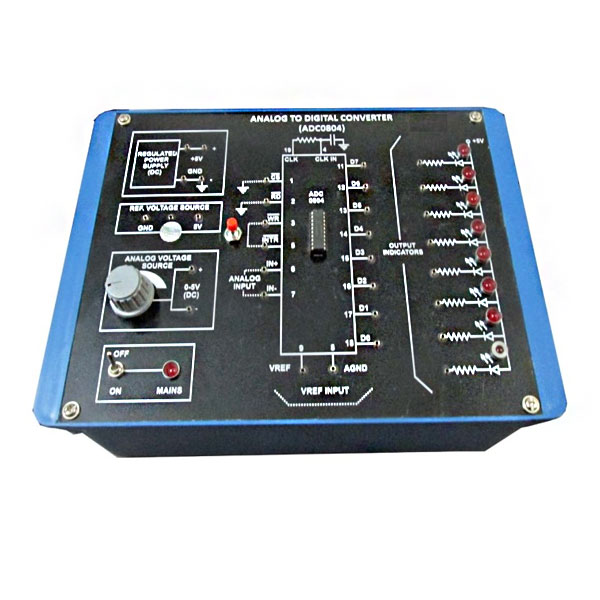

- Analog to Digital Converter.

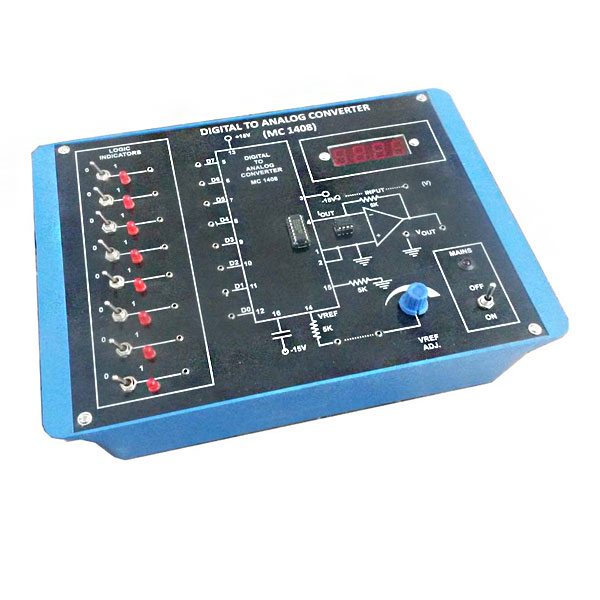

- Digital to Analog Converter.
- Analog to Digital Converter and Digital to Analog converter (combined).
- 2/3 BIT simultanious type A/D converter.
- Study of 4-bit digital comparator.
- TTL IC characteristics apparatus.
- CMOS IC characteristics apparatus.
